SUPERKLEAN DURAMIX
MODEL 8000GM — GLOBE VALVE
The DuraMix 8000GM is SuperKlean's original and most trusted steam and cold water mixing station, featuring globe valve controls for precise flow adjustment. Available in bronze (8000GM-B) or stainless steel (8000GM-S), without optional temperature gauge. Rated #1 by independent steam experts worldwide.

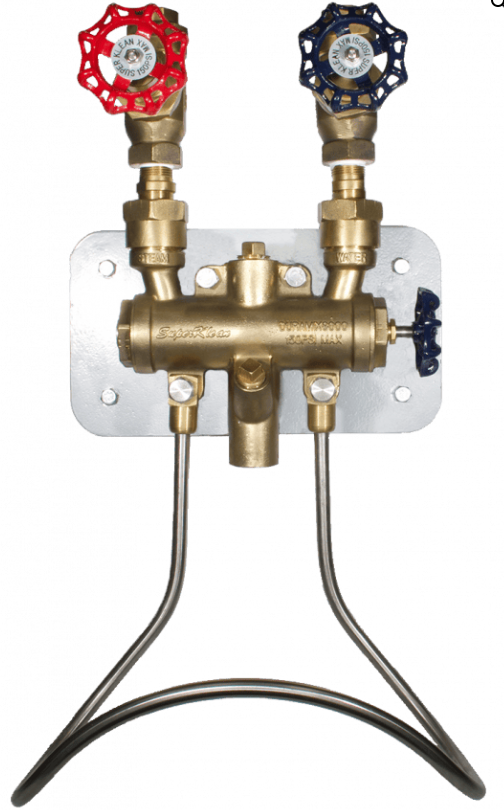

8000GM-B (Bronze)

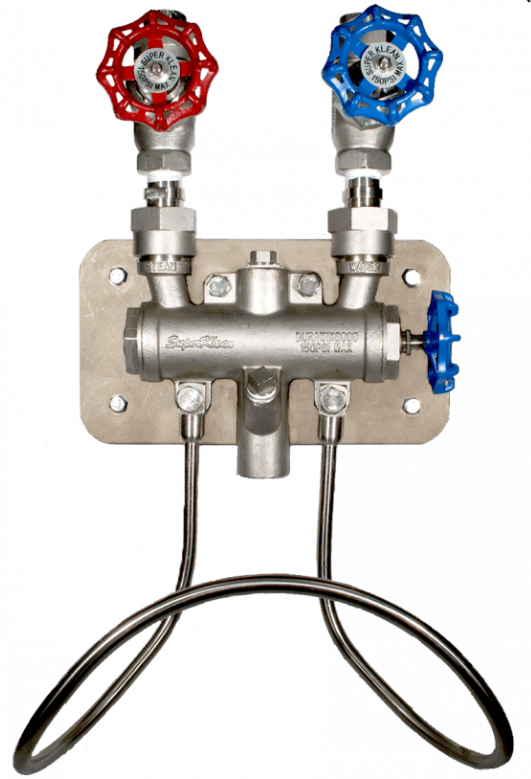

8000GM-S (Stainless Steel)PRODUCT DESCRIPTION
The DuraMix 8000GM mixes live steam with cold water to produce tempered hot water for washdown operations. The globe valve design provides fine, precise control over both steam and water flow rates — ideal for applications requiring exact temperature management.
SuperKlean's patented internal design prevents live steam from leaking into the hose, nozzle, or other areas of the station. If water pressure fails, the DuraMix 8000 automatically closes the steam poppet — making it the safest steam mixing station available. The dual output design allows one outlet for a washdown hose and a second for hard-pipe installation or a secondary hot water source.
KEY FEATURES
- Globe valve design for precise, fine flow control
- Patented zero steam leak design — eliminates burn hazards
- Automatic steam shutoff if water pressure fails
- Dual output — hose outlet + secondary hard-pipe outlet
- Operates at 30–150 PSI without changing internal components
- Only 15 minutes for preventive maintenance
- Available in bronze or 304 stainless steel
- Optional adjustable angle temperature gauge
- 3-year warranty — longest in the industry
SPECIFICATIONS
| Valve Type | Globe Valve |
| Inlet / Outlet Diameter | 3/4" NPT |
| Mixer Body | Bronze (8000GM-B) or 304 Stainless Steel (8000GM-S) |
| Check Valves | Bronze/Stainless Steel (B) or 304 SS (S) |
| Hose Rack | 304 Stainless Steel |
| Temperature Gauge | Optional — Stainless Steel, Adjustable Angle |
| Working Steam Pressure | 30–150 PSI (Saturated Steam Only) |
| Working Water Pressure | 30–150 PSI |
| Maximum Temperature | 200°F (93°C) |
| Maximum Pressure | 150 PSI |
| Weight | 26 lbs (8000GM-B) / 29 lbs (8000GM-S) |
| Warranty | 3 Years |
AVAILABLE MODELS
| Part # | Description |
|---|---|
| 8000GM-B | DuraMix steam & cold water mixing station, bronze, 2 globe valves, 2 check valves, hose rack, mounting plate |
| 8000GM-B-T | 8000GM-B with adjustable angle temperature gauge |
| 8000GM-S | DuraMix steam & cold water mixing station, 304 stainless steel, 2 globe valves, 2 check valves, hose rack, mounting plate |
| 8000GM-S-T | 8000GM-S with adjustable angle temperature gauge |
APPLICATIONS
"The Cadillac of mixing stations!"
— Independent Steam Equipment Expert
