SUPERKLEAN DURAMIX
8000T THERMOSTATIC SERIES
The DuraMix 8000T is SuperKlean's newest innovation — a thermostatic steam and cold water mixing station that automatically shuts off if the output temperature exceeds 185°F (85°C). Available in ball valve or globe valve configurations, and in bronze or stainless steel. Introduced in 2024.

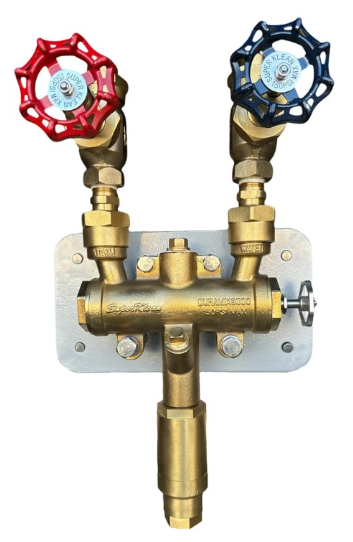

Bronze Version

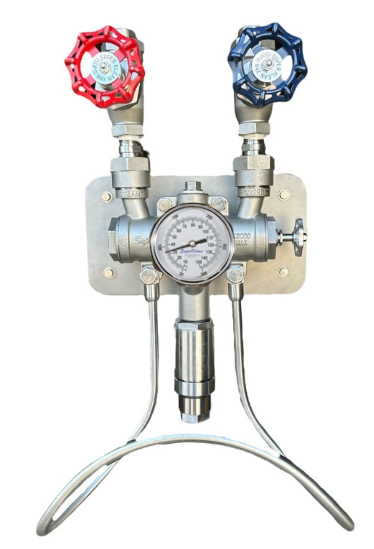

Stainless Steel VersionPRODUCT DESCRIPTION
The DuraMix 8000T Series features the same high-quality construction and performance as the DuraMix 8000 family — plus an additional thermostatic temperature-limiting safety feature. If the hose station's hot water output exceeds 185°F, the thermostatic valve closes instantly, stopping steam flow and protecting operators from scalding.
The 8000T is ideal for customers whose engineering specifications require a thermostatic mixing valve with temperature-limiting capability. It integrates seamlessly with SuperKlean's complete line of nozzles, adapters, and hoses.
KEY FEATURES
- Thermostatic shutoff at 185°F (85°C) — prevents scalding
- Available in ball valve (BM) or globe valve (GM) configurations
- Available in bronze or 304 stainless steel
- Dual output — hose outlet + secondary hard-pipe outlet
- Operates at 30–150 PSI without changing internal components
- Automatic steam shutoff if water pressure fails
- Only 15 minutes for preventive maintenance
- Optional adjustable angle temperature gauge
- 1-year warranty
IMPORTANT NOTE
The thermostatic temperature-limiting function is not available for the Secondary Outlet. The secondary outlet operates as a standard hot water supply.
SPECIFICATIONS
| Inlet / Outlet Diameter | 3/4" NPT |
| Mixer Body | Bronze or 304 Stainless Steel |
| Thermostatic Shutoff | 185°F (85°C) |
| Working Steam Pressure | 30–150 PSI (Saturated Steam Only) |
| Working Water Pressure | 30–150 PSI |
| Maximum Temperature | 200°F (93°C) |
| Maximum Pressure | 150 PSI |
| Weight (GM-B) | 24.3 lbs (11 kg) |
| Weight (GM-S) | 26.5 lbs (12 kg) |
| Weight (BM-B) | 20 lbs (9 kg) |
| Weight (BM-S) | 21 lbs (10 kg) |
| Warranty | 1 Year |
AVAILABLE MODELS
| Part # | Description |
|---|---|
| 8000T-GM-B | Thermostatic, bronze, 2 globe valves, 2 check valves, hose rack, mounting plate |
| 8000T-GM-B-T | 8000T-GM-B with adjustable angle temperature gauge |
| 8000T-GM-S | Thermostatic, 304 stainless steel, 2 globe valves, 2 check valves, hose rack, mounting plate |
| 8000T-GM-S-T | 8000T-GM-S with adjustable angle temperature gauge |
| 8000T-BM-B | Thermostatic, bronze, 2 ball valves, U-shaped handle, 2 check valves, hose rack, mounting plate |
| 8000T-BM-B-T | 8000T-BM-B with adjustable angle temperature gauge |
| 8000T-BM-S | Thermostatic, 304 stainless steel, 2 ball valves, U-shaped handle, 2 check valves, hose rack, mounting plate |
| 8000T-BM-S-T | 8000T-BM-S with adjustable angle temperature gauge |
