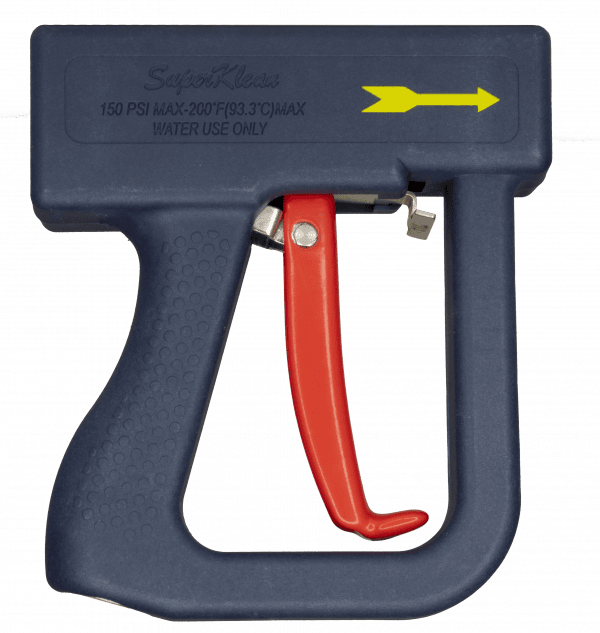

DURAFLOW CLASSIC SPRAY NOZZLE
Model DH150S — The heavy duty water gun that started a revolution in over 30 industries. Shipping for over 20 years. Trusted by hundreds of the World's Top 1000 Plants & Factories.
Available in Dark Blue, Red, and White
PRODUCT DESCRIPTION
SuperKlean's DuraFlow DH Series Nozzles are the premier hot water washdown nozzle that started a revolution in over 30 industries. Continuously improved for over 20 years, the DuraFlow is used and trusted by hundreds of the World's Top 1000 Plants & Factories, in categories ranging from Food, Beverage, Pharma, Dairy, Meat Producers and two dozen more vertical markets.
DuraFlow industrial spray nozzles are incredibly ergonomic, with a 4-position trigger-locking mechanism allowing for variable spray patterns, ranging from fan to solid streaming. Weighing only 1.53 lbs., and featuring heavy-duty stainless steel construction, these hot water nozzles will endure the rigors of any industrial use.
KEY FEATURES
- 304 stainless steel construction — only 1.5 lbs.
- 4-position trigger lock for variable spray patterns (fan to solid stream)
- Front trigger guard cover prevents accidental spray
- Quick-connect receptacle for DuraWand extensions and accessories
- Drip-free automatic shutoff
- Compatible with low-flow insert for water conservation
- Rated 150 PSI / 200°F (93°C)
- 1/2" female NPT inlet
- Available in Dark Blue, Red, and White
- Always in stock — same day shipment
SPECIFICATIONS
| Model | DH150S |
| Material | 304 Stainless Steel |
| Weight | 1.53 lbs |
| Inlet | 1/2" Female NPT |
| Rating | 150 PSI / 200°F (93°C) |
| Colors | Dark Blue, Red, White |
| Spray Patterns | 4-position trigger lock (fan to solid stream) |
FLOW RATES
Standard Flow
| Pressure (PSIG) | Flow (GPM) |
|---|---|
| 25 | 2.93 |
| 50 | 3.86 |
| 75 | 4.91 |
| 100 | 5.78 |
| 125 | 6.71 |
| 150 | 7.19 |
High Flow
| Pressure (PSIG) | Flow (GPM) |
|---|---|
| 25 | 4.39 |
| 50 | 6.54 |
| 75 | 8.18 |
| 100 | 9.56 |
| 125 | 10.83 |
| 150 | 11.89 |
CASE STUDY — Large Potato Processing Plant
The USA's largest potato processor was experiencing frequent replacements of cheaper, less robust brands. By switching to SuperKlean's DuraFlow DH150, they achieved far greater durability at a fair price. The client is now standardizing on this nozzle across all of its multiple plants.
